Application
Sesame soft cake is a traditional Chinese dessert with a soft, glutinous and sweet texture and a rich sesame aroma. Its production process is as follows: prepare the ingredients, then boil sugar, mix and stir all the ingredients, then press the materials, cut them into pieces and shape them, and finally package them.
HANYUAN "Sesame Soft Cake Production Line" ismainly applied in the slice cutting of mango cake, donkey-hide gelatin pastry, dates&walnut pastry, sesame pastry,covering the cooking of pastry, mixing of dry & adhesive materials, forming&cooling&cutting, pillow packaging. This production line applies the Gas or Steam Planet-stirring-poto concentrate the pastry gently. This production line adopts Air-conditioner cooling tunnel to actively cool the bar slab,which is suitable for the frozen forming of viscous and stick materials. This production line adopts strip-cutting-knivesand servo-vertical-guillotine-knife to cut the slab into sliceThis production line adopts fully automatic pillow packaging with transverse&longitudinal separating roller to achieve thefast sorting and arrangement of bars, high-speed packaging.

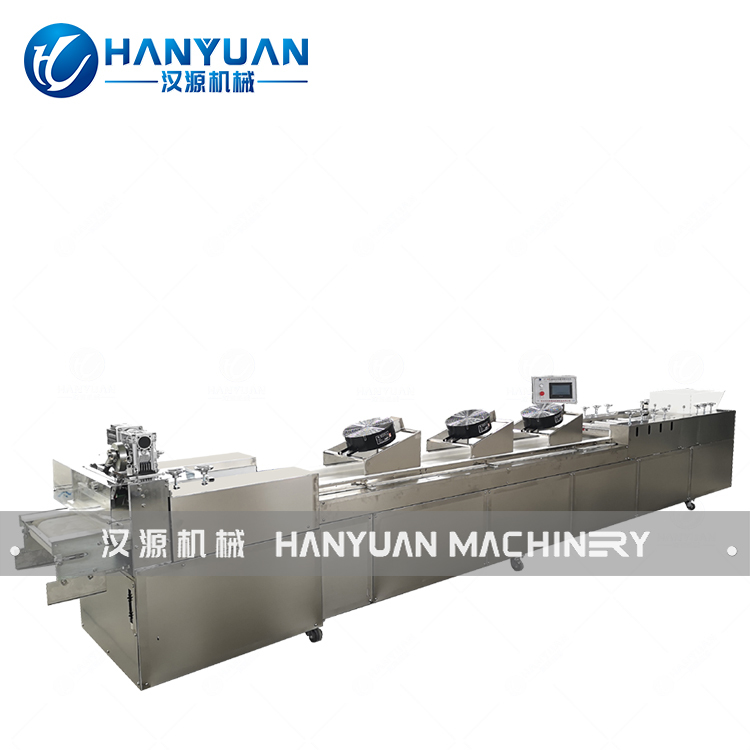

Machinery Introduction
Sample

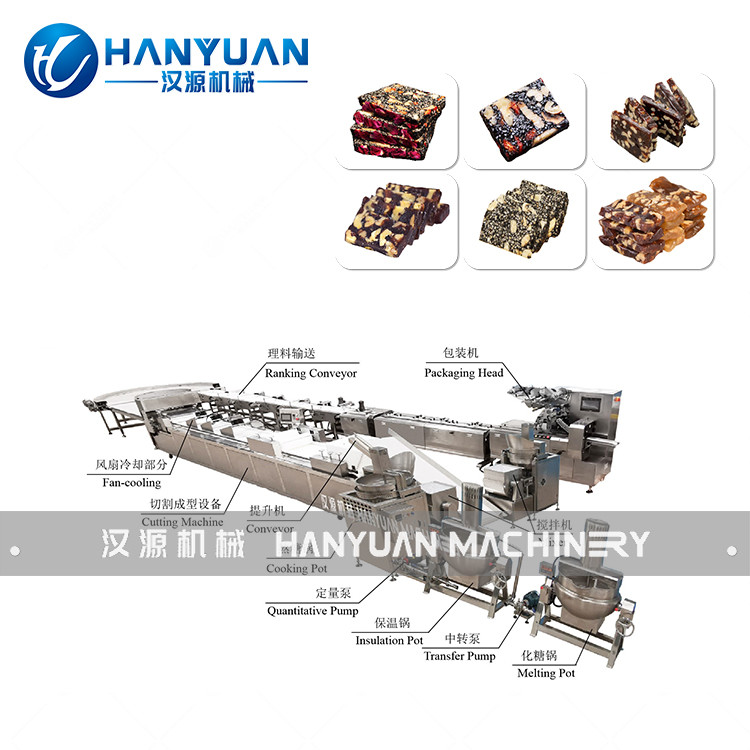

Machine Including
 |  |  |
| Sugar Cooking | Mixing Machine | Conveyor |
 |  | |
| Cutting Machine | Packaging Machine | |
Characteristics
1. This production line can realize the automatic preheating & proportioning of materails. Materails will be mixed in the cooking pot.
2.This production line applies the three-roll-feeding-hopper to spread the materail evenly.
3.This production line adopts fan-cooling & water-cooling to achieve evenly cooling from bottom to top.
4. This production line adopts the verticle/transverse cutting integrated cutter-head , the cutting size is accurate, bar will be separated completely.
5.This production line adopts fully automatic pillow packaging, fast sorting and arrangement of bars, high-speed packaging.
Technical Parameter
| Item | Value |
| Voltage | 380V/50Hz |
| Power | 100kW |
| Capacity | 300~500kg/h |
| Area | 30×6m |
| Manpower | 4~6people |
